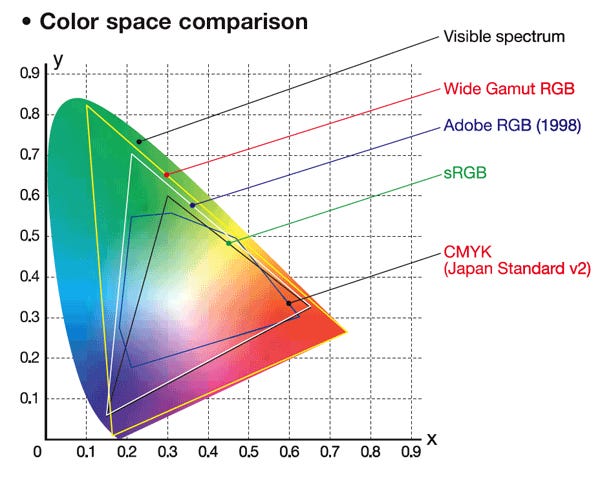

Convert color data into different standards and color spaces. Use the form below to convert color data across different color standards and color spaces (RGB, CMYK, L.ab, L.ch, L.uv, Hunter, XYZ etc.). Looking for color math or specific conversion formulas? Check our math page for some practical examples. Jan 30, 2012 I'm actually trying to get conversions between HSL and Munsell, but since the RGB to HSL conversions are well documented, RGB-Munsell correspondences are almost as good. Your conversion chart is not quite identical to what I've found elsewhere where I can compare them; you give Munsell 10 YR 5/8 as R160 G113 B32 while another gives the same. Free Excel file of 2352 Munsell colors with corresponding color values that you can search to find the nearest Munsell color and report it. A software conversion program available for reasonable $ where you can enter or cut-and-paste colorimetric values from EasyMatch QC and have the program report the corresponding Munsell color values.

MunsellToxyY Converts a Munsell specification into xyY coordinates, by interpolating over the extrapolated Munsell renotation data

Milonfrog.netlify.com › Rgb To Munsell Converter Weight. Driver intel pro wireless 3945abg network connection. Thanks in advance, roy. Any ideas on what I can.
Conversions Between the Munsell and sRGB Colour Systems Paul Centore c 26 April 2013 This document provides tables that convert between Munsell colours, and colours produced by an sRGB system. It is shown that the conversions can produce Mun. The RGB system is suitable for electronic colour displays, such as computer monitors.

Usage

Arguments

MunsellSpec

a numeric Nx3 matrix or a vector that can be converted tosuch a matrix.Each row has Munsell HVC, where H is Hue Number,and V and C are the standard Munsell Value and Chroma.The Hue is automatically wrapped to the interval (0,100].MunsellSpec can also be a character N-vector with standard Munsell notation; it is converted to an Nx3 matrix.

xyC

a numeric 2-vector with xy chromaticity of Illuminant C.It can also be one of the strings in the first column of this table;it is then replaced by the corresponding xy in the second column.

xy white point	reference
`'NBS'`	`c(0.3101,0.3163)`	Kelly, et. al. [RP1549] (1943). Rheinboldt et al. (1960)
`'JOSA'`	`c(0.31012,0.31631)`	Judd, Deane B. (1933)
`'NTSC'`	`c(0.310,0.316)`	NTSC (1953)
`'CIE'`	`c(0.31006,0.31616)`	CIE:15 2004

The default 'NBS' is probably what is intended by Newhall et. al.although no xy for C appears in that paper.This is the C used in the first computer program for conversion:Rheinboldt et al. (1960).The other options are provided so that a neutral Munsell chip has the xy thatthe user expects. Alternative values of xyC should not be too farfrom the above.If hcinterp is 'bicubic',this parameter only affects chips with Chroma < 4 (except Chroma=2).If hcinterp is 'bilinear',this parameter only affects chips with Chroma < 2.

hcinterp

either 'bicubic' or 'bilinear' (partial matching enabled).In the bicubic case, for a general input point, the output value is interpolatedusing a 4x4 subgrid of the lookup table, and the interpolation function is class C^1(except at the neutrals).In the bilinear case, the interpolation uses a 2x2 subgrid,and the function is class C^0.

vinterp

either 'cubic' or 'linear' (partial matching enabled).In the cubic case, for a general input point, the output value is interpolatedusing 4 planes of constant Value, and the interpolation function is class C^1.In the linear case, the interpolation uses 2 planes and the function is class C^0.

YfromV

passed as the parameter which to the function YfromV().See YfromV() for details.Option 'MGO' is not allowed because then Y>100 when V=10.

warn

if a chip cannot be mapped (usually because the Chroma is too large),its x and y are set to NA in the returneddata.frame.Just before returning, if any rows have NA, and this argument is TRUE,then a warning is logged.

Details

In case hcinterp='bicubic' or vinterp='cubic' a Catmull-Rom spline is used;see the article Cubic Hermite spline.This spline has the nice property that it is local and requires at most 4 points.And if the knot spacing is uniform:1) the resulting spline is C^1,2) if the knots are on a line, the interpolated points are on the line too.

Value

Munsell To Rgb Conversion

a data.frame with these columns:

`SAMPLE_NAME`	the original `MunsellSpec` if that was a character vector.Or the Munsell notation string converted from HVC.
`HVC`	the input Nx3 matrix
`xyY`	the computed output matrix, with CIE xyY coordinates of MunsellSpec illuminated by Illuminant C. In case of error, x and y are set to `NA`.

Warning

Even when vinterp='cubic' the function HVC rarrow xyY is not C^1on the plane V=1.This is because of a change in Value spacing:when V≥1 the Value spacing is 1, but when V≤1 the Value spacing is 0.2.

Note

When making plots in planes of constant Value,option hcinterp='bicubic' makes fairly smooth ovals,and hcinterp='bilinear' makes polygons.The ovals are smooth even when vinterp='linear',but the function is not class C^1 at the planes of integer Value.To get a fully C^1 function (except at the neutrals and on the plane V=1),hcinterp and vinterp must be set to the defaults.

Author(s)

Jose Gama and Glenn Davis

Rgb To Munsell Converter Weight Gain

Source

Paul Centore 2014The Munsell and Kubelka-Munk Toolboxhttp://centore.isletech.net/~centore/MunsellAndKubelkaMunkToolbox/MunsellAndKubelkaMunkToolbox.html
http://www.rit.edu/science/pocs/renotation
http://www.rit-mcsl.org/MunsellRenotation/all.dat
http://www.rit-mcsl.org/MunsellRenotation/real.dat

References

Judd, Deane B.The 1931 I.C.I. Standard Observer and Coordinate System for Colorimetry.Journal of the Optical Society of America.Vol. 23. pp. 359-374.October 1933.

Newhall, Sidney M.,Dorothy Nickerson,Deane B. Judd.Final Report of the O.S.A. Subcommitte on the Spacing of the Munsell Colors.Journal of the Optical Society of America.Vol. 33. No. 7. pp. 385-418.July 1943.

Kelly, Kenneth L.Kasson S. Gibson.Dorothy Nickerson.Tristimulus Specification of the Munsell Book of Color from SpectrophometricMeasurementsNational Bureau of Standards RP1549Volume 31. August 1943.

Judd, Deane B. and Günther Wyszecki.Extension of the Munsell Renotation System to Very Dark Colors.Journal of the Optical Society of America.Vol. 46. No. 4. pp. 281-284.April 1956.

National Television System Committee.[Report and Reports of Panel No. 11, 11-A, 12-19,with Some supplementary references cited in the Reports,and the Petition for adoption of transmission standardsfor color television before the Federal Communications Commission](1953)

Rheinboldt, Werner C. and John P. Menard.Mechanized Conversion of Colorimetric Data to Munsell Renotations.Journal of the Optical Society of America.Vol. 50, Issue 8, pp. 802-807.August 1960.

Wikipedia.Cubic Hermite spline.https://en.wikipedia.org/wiki/Cubic_Hermite_spline

Paul Centore 2014The Munsell and Kubelka-Munk Toolboxhttp://centore.isletech.net/~centore/MunsellAndKubelkaMunkToolbox/MunsellAndKubelkaMunkToolbox.html
